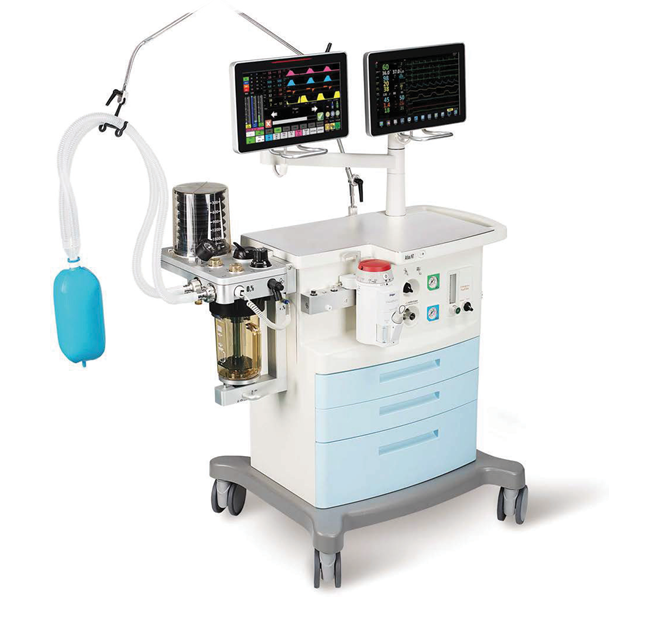

AtiOS N7 Anaesthesia Machine
Product Specification
- 15.6”TFT touch screen, integrated patient monitor design.
- User friendly design interface, easy to operate.
- Human engineering design, rotatable supporting arm Stainless steel material can stand any and adjustable angle.
- Full-electronic control and electronic flow meter, LED lights equipped to provide lighting precise control and accurate da†a monitoring.
- All ventilation modes to satisfy neonate, pediatric and adult patients.
Large Workbench
- Can be easily disassembled for clean and sterilization.
- Stainless steel material can stand any chemical sterilization agent.
- LED lights equipped to provide lighting for the workbench.
| Configurations | |
|---|---|
| Work Surface |
Height (With casters) 149cm (58.6inch) Width 90cm (35.4inch) Depth 65.6cm (25.8inch) Safe shelf loading 15kg+0.5kg |
| Screen | 15.6 inch TFT LED screen, 1366*768 pixels (17” /19” optional) |
| Gas control & supply | Electronic control gas mixer, O2, N2O, Air |
| Position for vaporizer | Dual positions (Selectatec bar) |
| ACGO | Standard |
| Electronic Flowmeter By-pass | O2, Air and N2O (numerical/bargraph) |
| Ventilator Software |
V-CMV, P-CMV, Standby, Manual/Spont Optional (P-CMV, P-SIMV, PSV, PRVC) |
| Spirometry loop | P-V, P-F, F-V, reference Loop |
| Waveforms | Up to 4 waveforms, user configurable |
| Li-ion Battery |
1 battery, 4800mAh Optional (2 batteries, 9600mAh) |
| Castors | Four castors (dual wheels 125mm) with 4 separate brakes |
| Drawers | 3 |
| Built-in heater | Standard |
| Auxiliary power outlets | 4 |
| Reading lamp | LED lighting Included |
| O2 cell | Standard |
| AGSS | Optional |
| Gas monitor module | Optional (CO2, AG) |
| Vaporizer | Optional (Drager/PenIon/Northern) |
| Spare cylinder yoke | Optional (O2, N2O) |
| Patient monitor | Optional |
| Suction device | Optional |
